Primitive plot

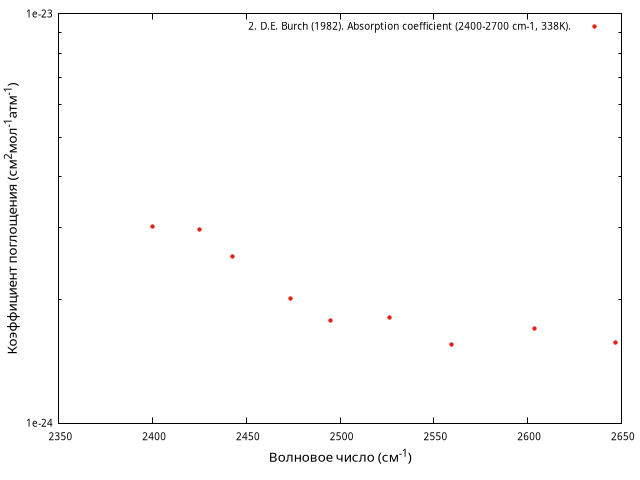

Figure 2. D.E. Burch (1982). Absorption coefficient (2400–2700 cm–1, 338K).
Absorption coefficient in an interval of 2400–2700 cm–1 at 338°K [21].
[21] D. E. Burch, Continuum absorption by H2O. Report AFGL_TR_81_0300 (1982), 46 pp.
Reference
Klimeshina T.E., Bogdanova Yu.V., Rodimova O.B., Water vapor continuum absorption in the 8–12 and 3–5 μm atmospheric transparency windows, Atmospheric and Oceanic Optics, 2012, Volume 24, Pages 71-76, DOI: 10.1134/S102485601201006X.

Coordinate system (Linear, Logarithmic)
Abscissa (X-axis)
System. Physical Quantity (Unit)
Wavenumber (cm⁻¹) Ordinate (Y-axis)
System. Physical Quantity (Unit)
Absorption Coefficient (cm²mol⁻¹atm⁻¹)
Physical quantities Commentary Additional description
Substance H2O Method type Experimental
Temperature 338 K Method, Model, Approximation
Pressure (total) 1 Numerical array origin Digitized
Pressure (partial) Numerical array type Citing
Path Length
Burch D.E., Continuum absorption by atmospheric H2O, Report AFGL-TR-81-0300, by Ford Aeronutronic to Air Force Geophys. Lab., Hanscom AFB, Massachusets, 1982, Pages 46.
Density
Wavenumber (T dependence)
